How to: Replace Bathroom Valves and Hoses

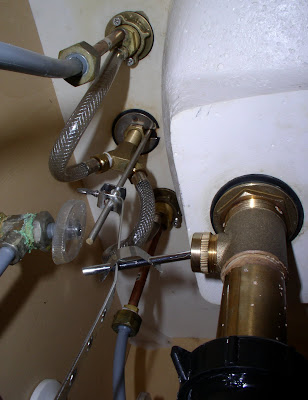

Here are a few "before" picture of the hoses and valves I had under my bathroom sink. I discovered a leak under one of the two sinks in my master bathroom, so obviously maintenance was needed. In addition, I inspected the other sink and cabinet area, I realized the valves on this sink are just a flood waiting to happen. Time to replace!


Look at this bad boy! Dang! Definitely time to replace!

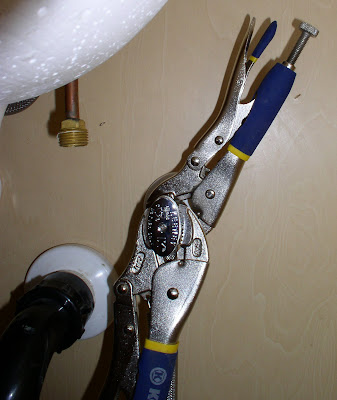

PREPARATION: Turn off main water source before working. Remove all items under the sink area so you have room to work. Grab some old towels, rags, etc. It is easiest to remove the old valve and install the new one with TWO wrenches or clamping pliers. Here are the two I used. You may find that the valve that needs replacing is challenging to remove especially if it has hard water deposits, rust, etc. If so, you may need WD-40 or some similar spray to loosen the connection.


On the left is the old valve that had started dripping recently. On the right is the new replacement valve to be installed.

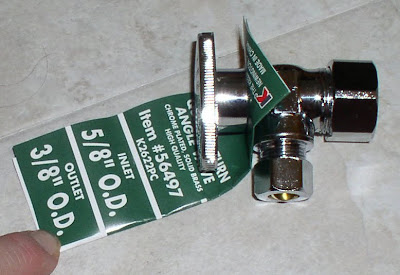

Here is a close-up view of one of the valves that I purchased from Lowe's to replace the leaky valves. Its a 5/8" Inlet O.D. and 3/8" Outlet O.D. ($5.58 each):

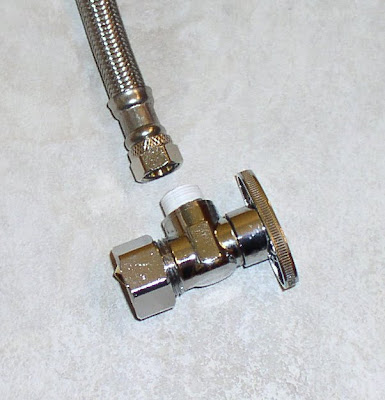

Here is a view of the old hose that came with the faucet (gray plastic) and the 12" replacement braided hose, which will last much longer and prevent future leaks. This new braided hose was purchased at Lowe's also. ($3.78 each).


TIP: Be sure and install this braided hose to your valve before you have to go under the sink. You will have greater freedom to tighten it when not restricted to the tight quarters under the sink. Be sure to wrap some white plumbing tape around the connection grooves on the valve.


On the left is the new valve connected to the 12" braided hose. On the right is the old valve and gray plastic tubing that came with the faucet that was installed a few years ago.


Next step -- as shown below -- is to fasten the valves (with braided hoses already attached) to the copper pipes from the wall with the fittings.


Here is where the two locking wrenches may come in handy. You will want to fasten one to the brand new valve and one to the connector probably already on your copper pipe from the wall. You will want to keep the braided hose pointing down and just tighten up that connection by fastening the connector nut on the copper pipe.


Next connect the 5/8" end of the braided hose to the copper pipe that connects to the faucet.

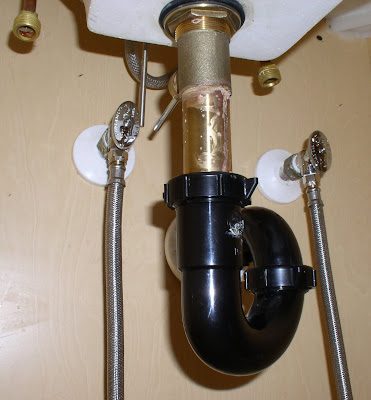

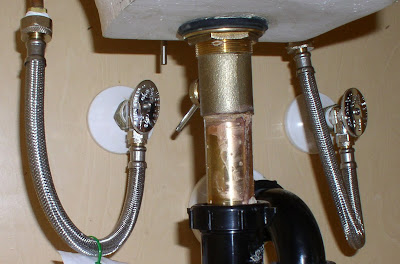

And the final test... turn the main water back on and check for dry or wet connections. Adjust as needed. I let it sit overnight and check again the next day just to be sure there is no minor leak.

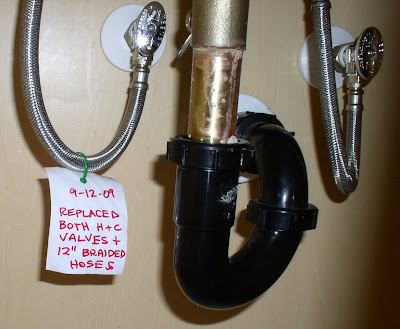

Finally, here is a tip for a record of your home maintenance.

TIP:
Find a piece of plastic and trim it out to about 2-3" square. I used a scrap from a bag of Morton's salt for my water softener. Write on it with a Sharpie marker and note what has been replaced and when. Loosely fasten it with a plastic zip-tie. It'll be waterproof and help jog your memory as to when this repair was last done.



Total cost of repair per sink, for valves and hoses: approximately $20.
